使用OpenCV的类VideoWriter进行视频写操作(保存视频)
在OpenCV中可以用类VideoWriter实现视频写的相关操作。
如需详细了解类VideoWriter的使用,最好的资料是官方文档,
类VideoWriter的官方文档页面链接如下:
https://docs.opencv.org/4.4.0/dd/d9e/classcv_1_1VideoWriter.html
这个类最常用的两个成员函数为open()和write(),
成员函数write()的使用很简单,参数那里填入写入视频的每一帧图像即可。
这里重点介绍下成员函数open()。
成员函数open()的原型在OpenCV4中一共有四种,如下:
- bool open (const String &filename, int fourcc, double fps, Size frameSize, bool isColor=true)
- bool open (const String &filename, int apiPreference, int fourcc, double fps, Size frameSize, bool isColor=true)
-
- bool open (const String &filename, int fourcc, double fps, const Size &frameSize, const std::vector< int > ¶ms)
-
- bool open (const String &filename, int apiPreference, int fourcc, double fps, const Size &frameSize, const std::vector< int > ¶ms)
复制代码
比较常用的是第一种,所以这里介绍下第一种,其参数意义如下:
filename---待写入的视频文件路径;
fourcc---设置视频的编码方式,通过四个字符来设置,可以用函数 cv::VideoWriter::fourcc()获得,这个函数详细的说明可参阅官方文档
https://docs.opencv.org/4.4.0/dd ... b3e28f4dd153bc5a7f0
常见的编码格有哪些?大家可参阅下面这篇博文:
https://www.cnblogs.com/20183544-wangzhengshuai/p/14851403.html
值得注意的是:当fourcc的值为-1时,程序运行时会出现如下的选项框让用户手动选择编码格式。
上面各选项的详细说明大家可参考下面这篇博文:
https://www.cnblogs.com/small-lazybee/p/15801978.html
fps---视频的帧率;
frameSize---视频的分辨率;
isColor---是否为彩色视频,默认是彩色视频;
明白以上参数的意义后,就基本掌握类VideoWriter的使用了
接下来给一个示例,该示例的作用是读取一个视频文件获得其每一帧,并将其每一帧编码为一个新的视频文件。
以下示例代码中用到的视频“tea_small.avi”的百度网盘下载链接如下:
https://pan.baidu.com/s/1VEI_ruNl1_34oZ4umEjkZg?pwd=fgdb
C++示例代码如下:
[C++] 纯文本查看 复制代码
//出处:昊虹AI笔记网(hhai.cc)
//用心记录计算机视觉和AI技术
//博主微信/QQ 2487872782
//QQ群 271891601
//欢迎技术交流与咨询
//OpenCV版本 OpenCV3.0
#include <opencv2/opencv.hpp>
#include <iostream>
using namespace std;
using namespace cv;
int main()
{
// 视频读入与输出路径设置
string sourceVideoPath = "F:/material/videos/tea_small.avi";
string outputVideoPath = "F:/material/results/tea_small_write_test.avi";
// 视频读入
VideoCapture inputVideo(sourceVideoPath);
// 检测视频输入的有效性
if (!inputVideo.isOpened())
{
cout << "fail to open!" << endl;
return -1;
}
// 获取视频分辨率
int videoWidth = (int)inputVideo.get(CV_CAP_PROP_FRAME_WIDTH);
int videoHeight = (int)inputVideo.get(CV_CAP_PROP_FRAME_HEIGHT);
cv::Size videoResolution = cv::Size(videoWidth, videoHeight);
cout << "视频分辨率:" << videoResolution.width <<" " << videoResolution.height << endl;
// 获取视频总帧数
int videoCount = inputVideo.get(CV_CAP_PROP_FRAME_COUNT);
cout << "总帧数:" << videoCount << endl;
//获取视频帧率
double fps = inputVideo.get(CV_CAP_PROP_FPS);
//初始化一个VideoWriter对象
VideoWriter outputVideo;
//open方法相关设置
int fourcc_1 = VideoWriter::fourcc('X', 'V', 'I', 'D'); //设置视频的编码方式
outputVideo.open(outputVideoPath, fourcc_1, fps, videoResolution, true);
if (!outputVideo.isOpened())
{
cout << "fail to open!" << endl;
return -1;
}
cv::Mat frameImg, resultImg;
int count = 0;
while (true)
{
inputVideo >> frameImg;//获取当前帧图像
// 显示当前帧
if (!frameImg.empty())
{
outputVideo << frameImg;//将当前帧进行编码写入视频文件
count++;
cout<< "一共"<< videoCount<< "帧,";
cout << "第" << count << "帧处理完毕" << endl;
}
else
{
break;
}
}
// 释放相关对象及资源
inputVideo.release();
outputVideo.release();
return 0;
}
代码很简单,不需要再作补充说明,运行结果如下图所示:
Python代码如下:
注意:与C++代码不同的是,在Python代码中,我保存的视频文件类型为mp4,而不是C++代码中的avi。
[Python] 纯文本查看 复制代码
# -*- coding: utf-8 -*-
# 出处:昊虹AI笔记网(hhai.cc)
# 用心记录计算机视觉和AI技术
# 博主微信/QQ 2487872782
# QQ群 271891601
# 欢迎技术交流与咨询
# OpenCV的版本为4.4.0
import cv2 as cv
import sys
if __name__ == '__main__':
sourceVideoPath = 'F:/material/videos/tea_small.avi'
outputVideoPath = 'F:/material/results/tea_small_write_test2.mp4'
# 视频读入
inputVideo = cv.VideoCapture(sourceVideoPath)
if inputVideo.isOpened():
print('视频读取成功\n')
else:
print('视频读取失败\n')
sys.exit()
# 获取视频分辨率
videoWidth = int(inputVideo.get(cv.CAP_PROP_FRAME_WIDTH))
videoHeight = int(inputVideo.get(cv.CAP_PROP_FRAME_HEIGHT))
videoResolution = (videoWidth, videoHeight)
print('视频分辨率:{} {}'.format(videoWidth, videoHeight))
# 获取视频总帧数
videoCount = inputVideo.get(cv.CAP_PROP_FRAME_COUNT)
print('视频总帧数:{}'.format(videoCount))
# 获取视频帧率
fps = inputVideo.get(cv.CAP_PROP_FPS)
# 初始化一个VideoWriter对象
outputVideo = cv.VideoWriter()
# open方法相关设置
# 设置视频的编码方式
fourcc = cv.VideoWriter_fourcc('M', 'P', '4', 'V')
outputVideo.open(outputVideoPath, fourcc, fps, videoResolution, True)
count = 0
while inputVideo.isOpened():
ret, frame = inputVideo.read()
if ret is True:
outputVideo.write(frame)
count = count + 1
print('一共{}帧,第{}帧处理完毕'.format(videoCount, count))
else:
break
# 释放并关闭相关对象
inputVideo.release()
outputVideo.release()

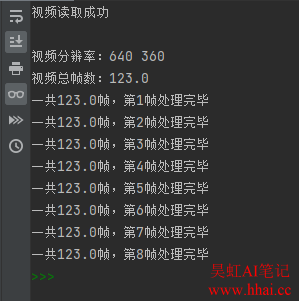

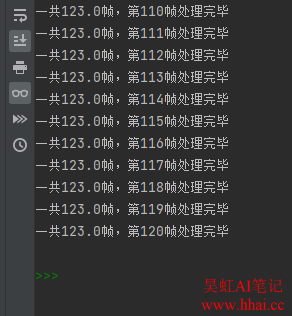

代码很简单,不需要再作补充说明,运行结果如下图所示:
|
|
